Ideal for aged-care, hospitals and where ever sanitised water is required for effective Legionella control.
Quantum LegioGuard Heat Pump
Industry-Leading Protection and Performance
Discription
LegioGuard
Model
Placeholder text
Dimensions
Placeholder text
Hot Water Production Rate
L/Hr (COP)
Placeholder text
3 People
2 Bathrooms
Small Business*
*Subject to correct hot water demand sizing
Advanced DEHP Technology
Quantum LegioGuard has developed a patented Dual Effect Heat Pump (water sourced) to heat and chill water simultaneously as part of an energy efficient heat transfer process.

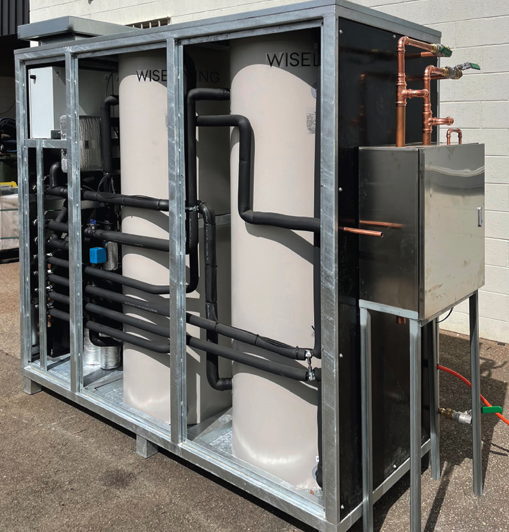

Manufactured in Australia, LegioGuard is designed to supply sanistised hot, warm, and cold water to facilities as an energy efficient alternative to traditional electric boiler or gas hot water systems. The LegioGuard system achieves this by heating all incoming potable supply (including the cold drinking water) to above 70°C therefore killing any legionella and other bacteria that may be present. The 70°C water is stored in one storage tank with a quantity then transferred to the second storage tank where it is chilled to between 15-20°C for supply to cold fixtures within the facility.
Maximize Your Savings with Government Rebates
Eligible for state and federal rebates.
Save even more on energy bills with available incentives.
Contact Quantum to find out which rebates you qualify for.
Why Choose Quantum LegioGuard?
Legionella Control: Effectively combats legionella bacteria, ensuring a sanitised water supply for all users.
Energy Efficient: Utilizes Dual Effect Heat Pump technology to simultaneously heat and cool water with minimal energy use.
Reliable Performance: Consistently delivers large volumes of sanitised hot and cool water (up to 380L per minute).
Low Maintenance: Built with durable materials like vitreous enamel-lined steel and aluminum anodes for longevity.
High-Capacity Recovery for Commercial Demands
The LegioGuard system is built to handle high-demand environments with fast recovery times, ensuring uninterrupted service.
Heat Pump Model
10 kW system
15 kW system
20 kW system
30 kW system
Cold (LPH)
176 LPH
266 LPH
352 LPH
531 LPH
Hot (LPH)
176 LPH
266 LPH
352 LPH
531 LPH
Flow Rates for Optimal System Performance
Ensure your facility operates efficiently with the correct valve sizes for optimal flow and minimal pressure loss.
Valve Model
25mm Valve
32mm Valve
40mm Valve
50mm Valve
Flow Rate (L/min)
80 L/min
180 L/min
280 L/min
380 L/min
Pressure Loss (kPa)
145 kPa
160 kPa
195 kPa
200 kPa
Ideal for High-Demand,
Safety-First Environments
Hospitals and healthcare facilities
Aged Care
The LegioGuard system can reduce energy consumption by up to 40% compared to traditional separate heating and cooling systems.
Case Study: A large hotel cut energy costs by 35% after switching to LegioGuard, reducing operational expenses while ensuring consistent sanitised water supply.
Ensure your facility has safe, reliable, and efficient hot and cold water with Quantum LegioGuard.
