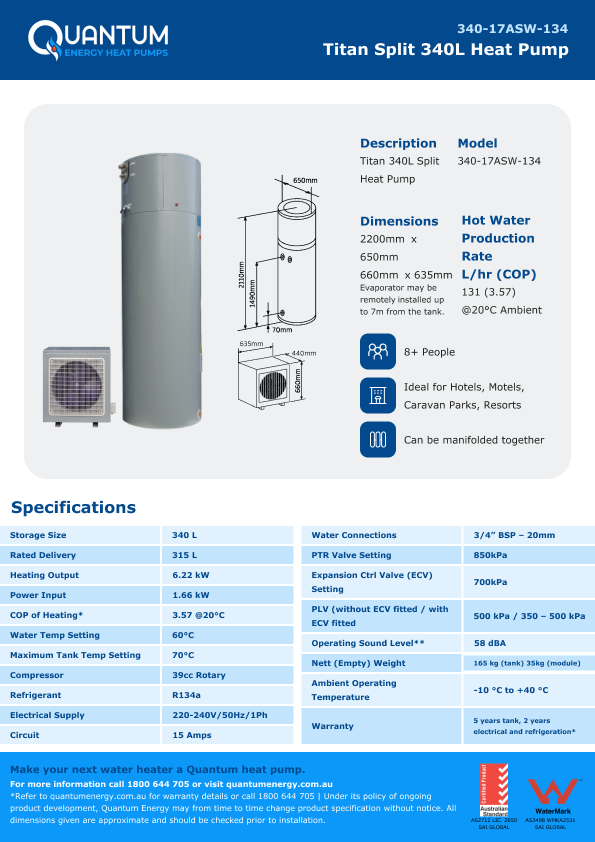

Titan Split 340L Commercial Heat Pump
High-Capacity, Energy Efficient Hot Water for Commercial Use
Discription
Titan 340L Split
Heat Pump
Model
340-17ASW-134
Dimensions
2200mm x 650mm (Tank)
660 x 635mm (Module)
Evaporator may be remotely
installed up to 7m from the tank.
Hot Water Production Rate
L/Hr (COP)
131 (3.57)
@20°C Ambient
8+ People
Ideal for Hotels, Motels, Caravan Parks, Resorts
Can be manifolded together
Modular, Built-in Redundancy, & Easily Maneuverable
Modular Design: Ability to manifold multiple units for larger hot water loads.
Redundancy: Multiple units allows for redundancy
Portability: Fits into your commercial lifts, reducing hoisting costs.
Maximum Output: Provides up to 340L of hot water storage, perfect for high-demand environments, with high capacity compressor for fast recovery.
Energy Savings: COP of 4.09 @ 25 °C – far more efficient than traditional electric systems.
Durable Design: Corrosion-resistant glass-lined enamel tank ensures long-term performance.
Quiet Operation: Less than 58DBA – runs quietly in any commercial setting.
Durable Design: Designed for minimal maintenance and reduced operating costs.
Hotels and Motels
Apartment complexes
Fitness centers and Gyms
Industrial & Commercial Facilities with consistent hot water needs
Storage Size
340 L
Rated Delivery
315 L
Heating Output
6.22 kW
Power Input
1.66 kW
COP of Heating
3.57 @20°C
Water Temp Setting
60°C
Maximum Tank Temp Setting
70°C
Compressor
39cc Rotary
Refrigerant
R134a
Electrical Supply
220-240V/50Hz/1Ph
Circuit
15 Amps
Water Connections
3/4” BSP – 20mmPTR Valve Setting
850 kPa
Expansion Ctrl Valve (ECV) Setting
700kPa
PLV (without ECV fitted / with ECV fitted
500 kPa / 350 – 500 kPa
Operating Sound Level**
58 dBA
Nett (Empty) Weight
165 kg (tank) 35kg (module)
Ambient Operating Temperature
-10 °C to +40 °C
Warranty
5 years tank, 2 years electric and refrigeration*
AS2712 LIC. 2650SAI GLOBAL
AS3498 WMKA2531SAI GLOBAL
